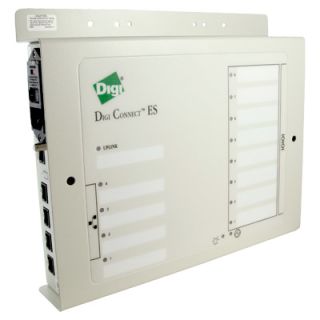

Digi Connect ES - Serieller Terminal Server mit galvanischer Trennung

Artikelnummer: DC-ES-xxx

Herstellernummer: DC-ES-xxx

  • Medical safety certified - IEC 60601 / EN60601 3rd edition compliant
  • Integrated Ethernet switch
  • 4 or 8 electrically isolated serial ports (RS-232)

Kategorie: Netzwerkswitche

Portanzahl
Netzwerk

Preis auf Anfrage
Muss bestellt werden. Ab Bestellung lieferbereit in 14 Tagen.

Dieses Produkt hat Variationen. Wählen Sie bitte die gewünschte Variation aus.


The Digi Connect ES serial server provides mission-critical serial over Ethernet connectivty. It is the first IEC 60601/EN60601 compliant device of its kind and consists of four or eight galvanic isolated RS-232 serial ports, with a 10/100 Mbps network interface and Ethernet switch. Applications include providing Ethernet connections from serial devices such as ventilators, EKGs, patient monitoring systems, infusion pumps and glucose meters to the central data management system.

Galvanic isolation provides extended electrical safety. There is no electrical path from port to port, preventing a ground fault from disrupting the operation of the Digi Connect ES serial server or of any device connected to it. Similarly, there is no electrical path for current to earth ground, ensuring no electrical shock when making physical contact with the Digi Connect ES.

Digi's patented RealPort® COM port redirector technology makes it possible to establish a connection between the host and a networked serial device by creating a local COM or TTY port on the host computer, allowing existing software applications to work without modification. Incoming/outgoing and Telnet sessions on each port give system administrators a high level of control over networked serial devices. Other features include Secure Shell (SSH v2) encryption to protect against unauthorized network monitoring or "sniffing."

SpecificationsDigi Connect® ES
Features
ManagementHTTP/HTTPS, CLI or Telnet, Optional secure enterprise management via Digi Connectware® Manager
ProtocolsUDP/TCP, DHCP, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Rlogin & Auto Connect, TFTP
SecuritySSL, SSL/TLS, SSHv2, FIPS 197 (serial ports), SNMPv2
SoftwareDevice-initiated patented RealPort COM port redirector and RFC 2217, Python scripting,
Custom development environment
Status LEDsPower, Locator, Serial and Ethernet link/activity
Operating SystemsAIX, HP-UX, Linux®, SCO® OpenServer? 5, SCO® OpenServer? 6, Solaris? Intel, Solaris? SPARC, Windows® XP, Windows Server® 2003, Windows Server® 2008, Windows Vista®
Dimensions
(L x W x D)
9.30 in x 10.60 in x 2.10 in (23.5 cm x 26.9 cm x 4.20 cm)
Weight3.0 lb (1.34 kg)
Interfaces
Serial
Ports4/8 separately isolated RS-232 ports (2.5kV)
ThroughputUp to 230 Kbps
Signal SupportTXD, RXD, RTS, CTS, DTR, DSR, DCD
Ethernet
Ports1 uplink, Optional 4-port switch
Physical Layer10/100 Base-T separately isolated (1.5kV)
ModeFull or half duplex
Power Requirements
Power SupplyInternal 100-240 VAC, 50-60 Hz 0.2A max
Surge Protection4 kV burst (EFT) per-4-4, 2 kV surge per EN61000-4-4
4 kV isolation input to output
2 kV surge per EN61000-4-5
Environmental
Operating Temperature0° C to 55° C (32° F to 130° F)
Storage Temperature-30° C to +85° C (-22° F to +185° F)
Relative Humidity5 to 95% (non-condensing)
Serial Port Protection (ESD)+15 kV human body model
Regulatory Approvals
EmissionsEN55011, EN55022, AS/NZS CISPR 22, ICES-003, FCC P15 Subpart B Class A
SafetyIEC/EN60950-1, CAN/CSA 22.2 60950-1-3, UL 60950-1, IEC 60601-1, UL 60601-1, EN60601-1 3rd edition, EN60601-1-2
ImmunityEN55024, ICES-003

Artikelgewicht: 1,34 Kg
