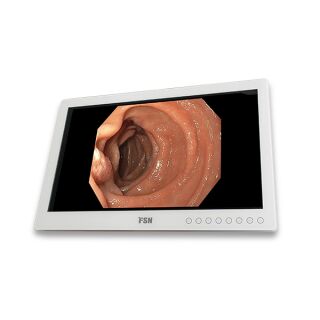

FS-E2102D 21.5” FHD Medical Display

Artikelnummer: FS-E2102D
HAN: FS-E2102D
Kategorie: OP-Monitore
Hersteller: FSN Medical Technologies

FS-E2102D features rapid video signal detection, image pan, zoom, freeze, PIP, PBP, and triple window layout support, all in a fanless - sterile field compatible enclosure.

1.500,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

Beschreibung

Monitors from FSN Medical Technologies are engineered and built for compatibility with specialized surgical and diagnostic equipment used in operating rooms, emergency rooms, and procedural facilities. This 21.5 inch Full HD monitor offers exceptional value. The size is ideal for limited spaces that still require monitor maneuverability.

FS-E2102D features rapid video signal detection, image pan, zoom, freeze, PIP, PBP, and triple window layout support, all in a fanless – sterile field compatible enclosure. It accepts popular DisplayPort and HDMI signal types. The flush-front filter allows for better cleaning and sterilization practices. Support for user presets is included.

FS-E2102D features an intuitive on-screen menu for image and layout settings. Multi-modality options let doctors view multiple images at the same time. The rounded monitor housing corners help protect OR personnel from accidental bumping injuries. Its lightweight design is ideal for boom or spring-arm mounting.

More screen window layouts to choose from.
Protective corner guards for a safer work area.
Power output for 5 V accessories.
Fanless – sterile field compatible enclosure.

Item	Description
Panel	21.5 inch TFT LCD (LED)
Resolution	1920 x 1080 pixels
Aspect Ratio	16 : 9
Active Area	476.06(H)mm x 267.79(V)mm
Pixel Pitch (mm)	0.2479 x 0.2479
Response Time (typical)	22 ms (rise and fall)
Number of Colors	16.7 million
Brightness	(typical) 350 cd/m2
Gamut	BT.709 calibrated
Contrast Ratio	(typical) 1000 : 1
Surface Treatment	Anti-reflection, anti-fingerprint
Viewing Angle	(CR>10) R/L 178°, U/D 178°
Input Signal	2 x HDMI (1.4) 1 x DP (1.2)
Output Signal	1 x HDMI (1.4)
Power Supply	AC/DC Adaptor (AC 100~240V, DC 12V 5A)
Power Consumption	45W max
Latency (typical)	2 ms max
Unit Dimension	527.9(W) x 334.5(H) x 58.9(D) mm 20.78(W) x 13.17(H) x 2.32(D) inch
Package Dimension	667(W) x 580(H) x 163(D) mm 26.26(W) x 22.83(H) x 6.41(D) inch
IP Rating	IP33 - overall
Weight	5.48 kg, 12.08 lbs. (monitor) 8.45 kg, 18.62 lbs. (shipping package)
Certifications	ANSI/AAMI ES60601-1(UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device

Angaben zur Produktsicherheit

Herstellerinformationen:

FSN Medical Technologies

, ,

Produkteigenschaft	Wert
Netzteil:	Externes Netzteil
Zus. Schnittstellen:	RS-232 GPIO
Befestigung:	VESA 100
Spannungsausgang:	5 V DC
Bild in Bild:	ja
Spannungsversorgung:	12 V DC 230 V AC
Service:	1 Jahr Bring-In-Service
Raumklasse DIN 6868-157:	Nicht geeignet für Befundung oder Betrachtung
Bildschirmdiagonale:	21/22 Zoll
Signaleingänge:	DisplayPort HDMI
Signalausgänge:	HDMI
Auflösung (maximal/nativ):	Full HD (1.920 x 1.080)
Versandgewicht:	8,45 kg
Artikelgewicht:	5,48 kg
Abmessungen(LxBxH) ( Länge × Breite × Höhe ):	5,89 × 52,79 × 33,45 cm
